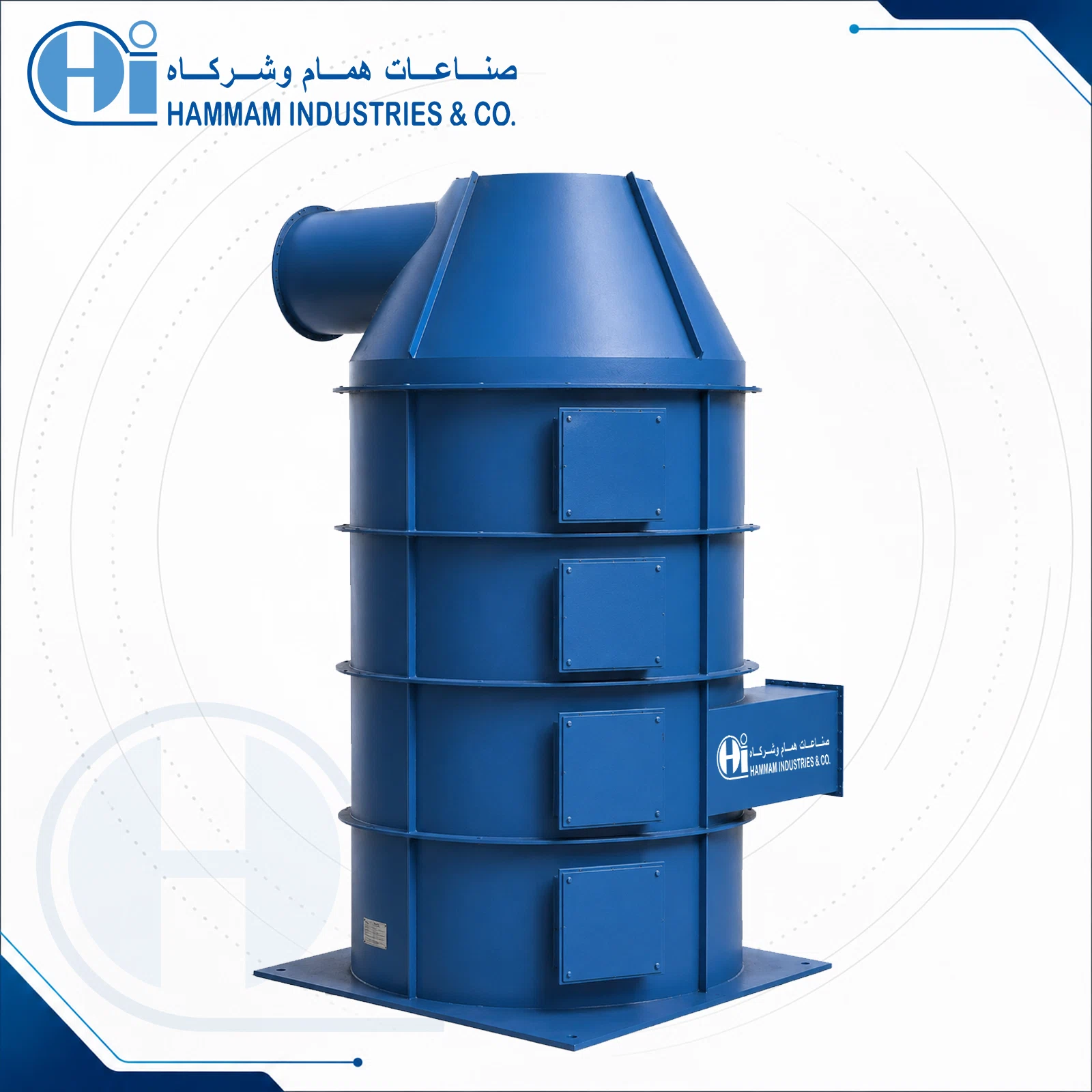

Fume Scrubber Description
The fume scrubber is a single stage unit with mist elimination provision. Operation of the fume scrubber is as follows. Water is pumped from the scrubber sump through a reticulated PVC piping system to a spray header assembly in the upper body of the scrubber. The water is discharged inside the scrubber body via PVC spray nozzles onto the scrubber bed which consists of high efficiency packing. The fumes are separated from the gas stream by the process of impingement, and the resultant contaminated liquor is carried down to the sump of the scrubber by gravity. The gas stream then passes through a mist elimination bed where any remaining entrained moisture is removed by the process of impingement and drained to the sump of the scrubber by gravity.
Site connections are required for the following services:-
Make-up water: A mains pressure make-up line is to be fitted to the ball float valve connection located under the lower viewing port. It recommended that an isolation valve is installed upstream of the ball float valve to permit isolation of the water supply and servicing of the float valve.
Drain Connection: A drain connection is provided for connection to the site drainage system. This outlet incorporates the overflow provision for the fume scrubber and should be processed through a waste treatment facility before being disposed of.
